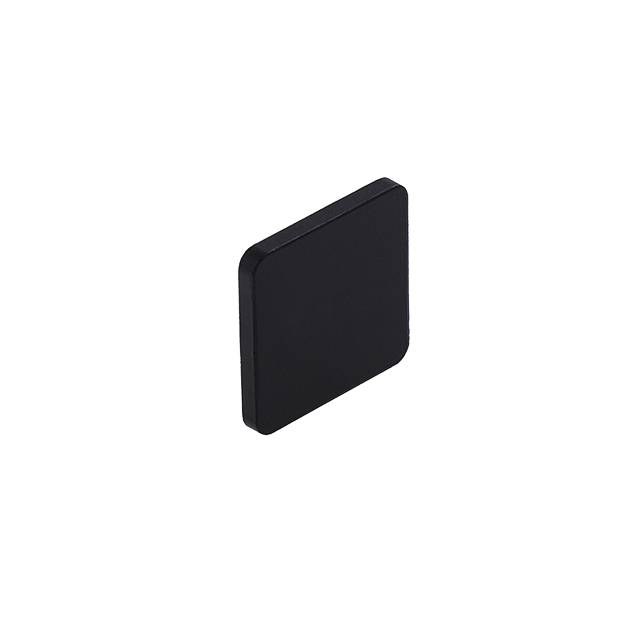

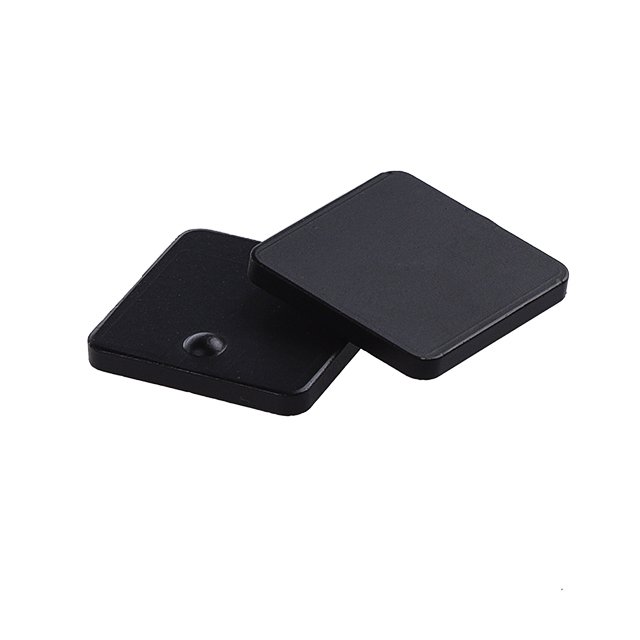

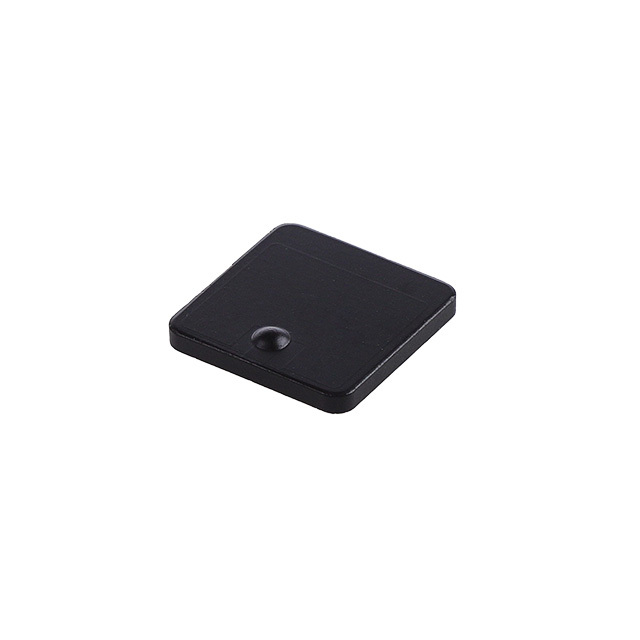

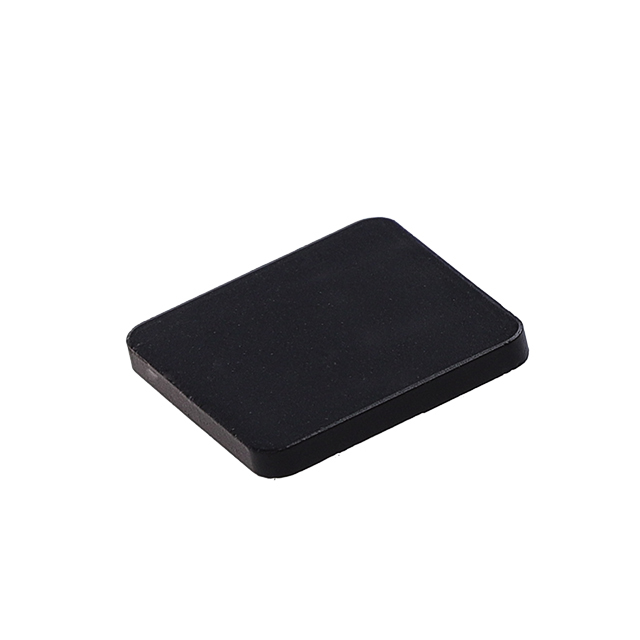

A small size ceramic UHF RFID Tag is used on metal surface,It is made of NXP UCode chip and ceramic material. It can work stably and reliably on metal surface and off metal surface, which is widely used in indoor and outdoor asset management. This Ceramic RFID tag can withstand high temerature for asset tracking.
ADVANTAGES:
Work stably on metal surface amd off metal surface
100% memory writing tested.
Both material and design have been tested for reliability.
100% function tested by Voyantec Tagformace.
MAIN FEATURES:
Can customize size for customers.
Can be lasered with barcode Resistant to acid-base, waterproof
Logo can be printed on the surface of tag.
Flexible and convenient installation.
Painted ones can be used in outdoor
APPLICATIONS:
Tool management.
IT equipment management.
Metal containers management.
Metal equipment management.
Personnel patrol management.
Fixed asset management.
Gun management.
Storage management.
CHARACTERISTICS：
|
Compliance |
EPC Class1 Gen2; ISO18000-6C |
|
|
Frequency |
902-928MHz , 865~868MHz (Can customize frequency) |
|
|
Chip |
NXP Ucode 8 |
|
|
Memory |
EPC 96bits User 512bits |
|
|
Read/write |
Yes (EPC and User) |
|
|
Data Storage |
50 years |
|
|
Warranty |
One year |
|
|
Material |
ceramic |
|
|
Dimension |
25mm L x 25mm W x 3mm H |
|
|
Storage Temperature |
-40 |
℃~ +120 ℃ |
|
Operating Temperature |
-25 |
℃~ +85℃ |
|
Storage humidity |
5%～95% |
|
|
Delivery format |
Single |
|
|
Installation Method |
3M300LSE tape |
|
|
Weight |
~ 10g |
|
|
Package |
Bubble bag and carton |
|
|
Color |
Black |
|
|
Power Supply |
Passive |
|
|
Drop Test |
1.5 meters high, 100 drop test passed |
|
|
Alcohol test |
95% alcohol test passed |
|
|
Gasoline test |
Passed |
|
|
High & low temperature shock test |
-40 ℃ ~ +85℃, 100 cycles,30 days |
|
|
Temperature cycle test |
-40 ℃ ~ +85℃, 100 cycles,30 days |
|
|
RoHS |
Compatible |
|
|
Read distance on metal surface |
Up to 4 meters ( With Impinj R100, 30dbm, 4dbi ) |
|
|
RF performance consistency test |
100% tested by Voyantic Tagformace |
|
|
Options |
pre-encoding, Barcode laser, logo |
|
