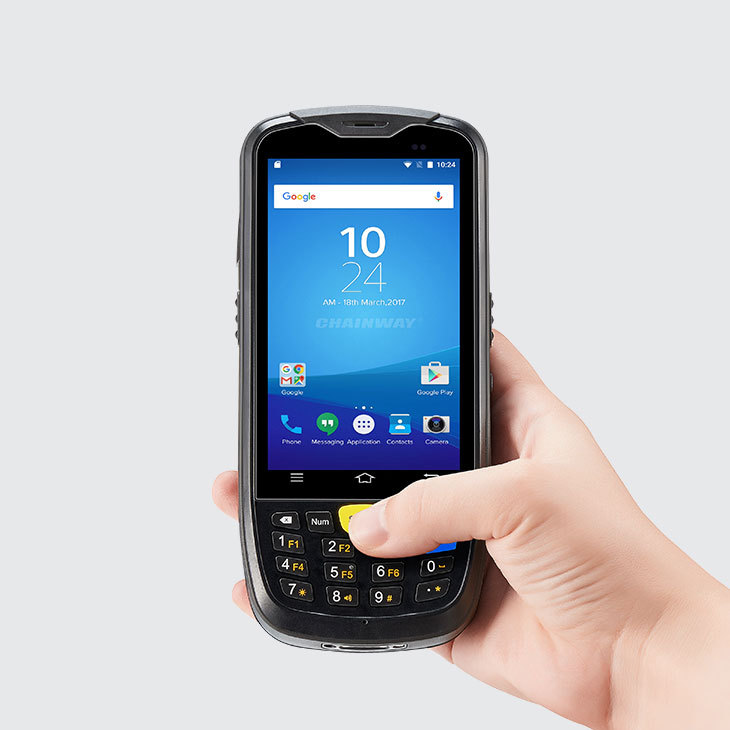

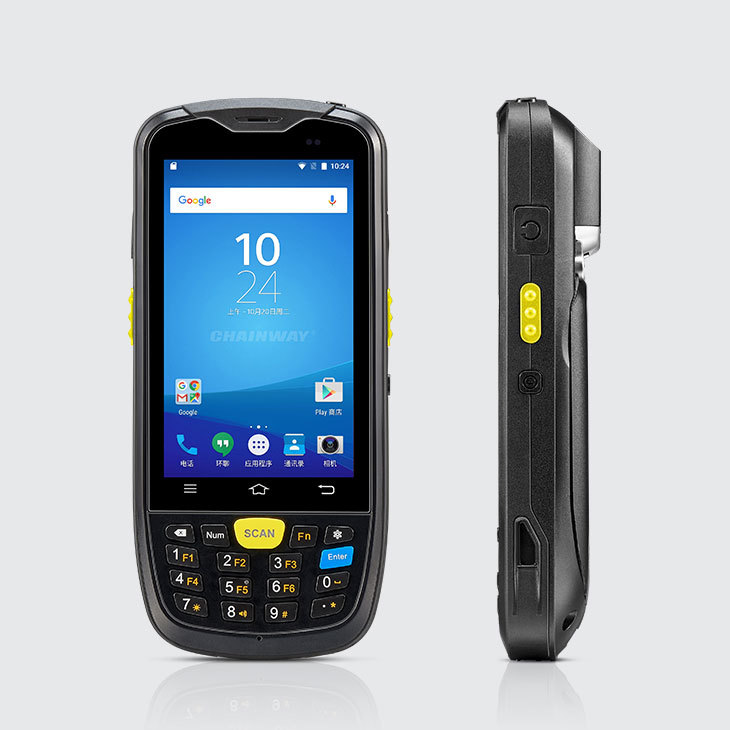

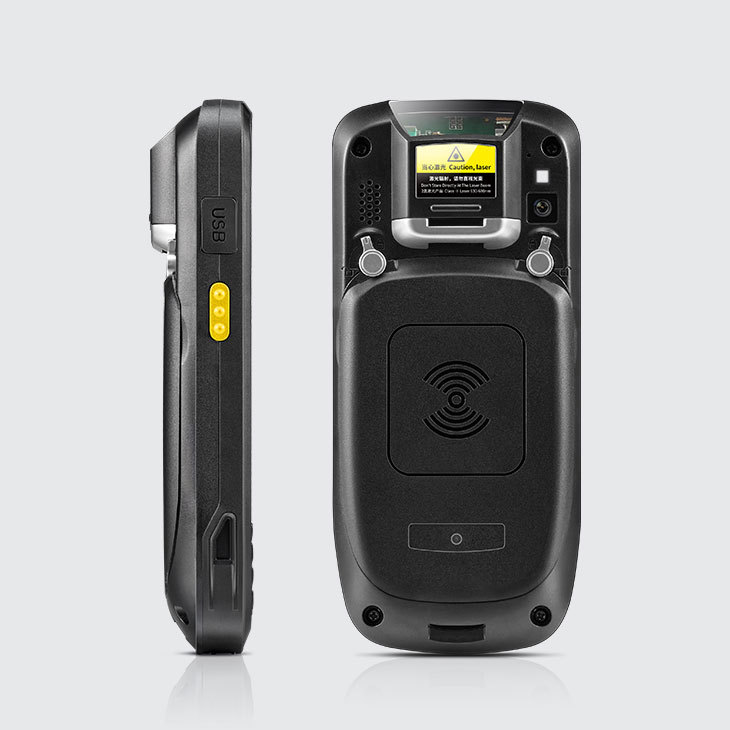

Chainway C6000 2D barcode scanner with keyboard and NFC reader

Physical Characteristics

Dimensions

157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in.

Weight

292 g / 10.3 oz.

Display

4'' WVGA (480*800), 16.7 M colors

Touch Panel

Rugged dual touch capacitive touch panel

Power

Main battery: Li-ion, rechargeable, 4200 mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)

Vibrator

Support

Expansion Slot

1 slot for SIM card, 1 slot for MircoSD(TF) or PSAM card (optional)

Interfaces

USB 2.0, Type-C, OTG

Audio

MIC, RECEIVER, Loudspeaker(0.8W), support voice call

Keypad

3 TP soft keys, 3 side keys, numeric keyboard

Sensors

Proximity sensor, light sensor, accelerometer sensor

Developing Environment

Operating System

Android 10.0, GMS, FOTA, SafeUEM supported

SDK

Chainway Software Development Kit

Language

Java

Tool

Eclipse / Android Studio

Performance

CPU

Cortex A-53 2.0 GHz octa-core

RAM+ROM

3 GB + 32 GB
2 GB + 16 GB (optional)

Expansion

Supports up to 128 GB Micro SD card

User Environment

Operating Temp.

-4°F to 122°F / -20°C to 50°C

Storage Temp.

-40°F to 158°F / -40°C to 70°C

Humidity

5%RH - 95%RH non condensing

Drop Specification

Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP65 per IEC sealing specifications

ESD

±15 KV air discharge, ±6 KV conductive discharge

Barcode Scanning

2D Imager Scanner

Zebra SE4710; Honeywell N6603

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc

Note

*This function is optional

Camera

Camera

13MP Autofocus with Flash

NFC

Frequency

13.56 MHz

Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc

Chips

M1 card (S50, S70), CPU card, NFC tags, etc

Range

2-4cm

Note

* Pistol grip is optional, NFC can not coexist with the pistol grip

Communication

WLAN

Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,
112,116,120,124,128,132,136,140,149,153,157,161,165, depends on local regulations
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.

WWAN

2G: GSM850/GSM900/DCS1800/PCS1900
3G: CDMA EVDO: BC0
       WCDMA: B1/B2/B4/B5/B8
       TD-SCDMA: A/F(B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/ B28B/B34/B38/B39/B40/B41

WWAN (Others)

Depending on the country's ISP

Bluetooth

V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0

GNSS

GPS/AGPS, GLONASS, BeiDou, internal antenna

Note

*C6000 models being manufactured for Brazil Market, do not include 4G B7 and B38 frequency.

*C6000 Wifi-Only Model available. Wifi-Only model does not include WWAN GSM_GPRS(2G,3G,4G) and sim card socket.
